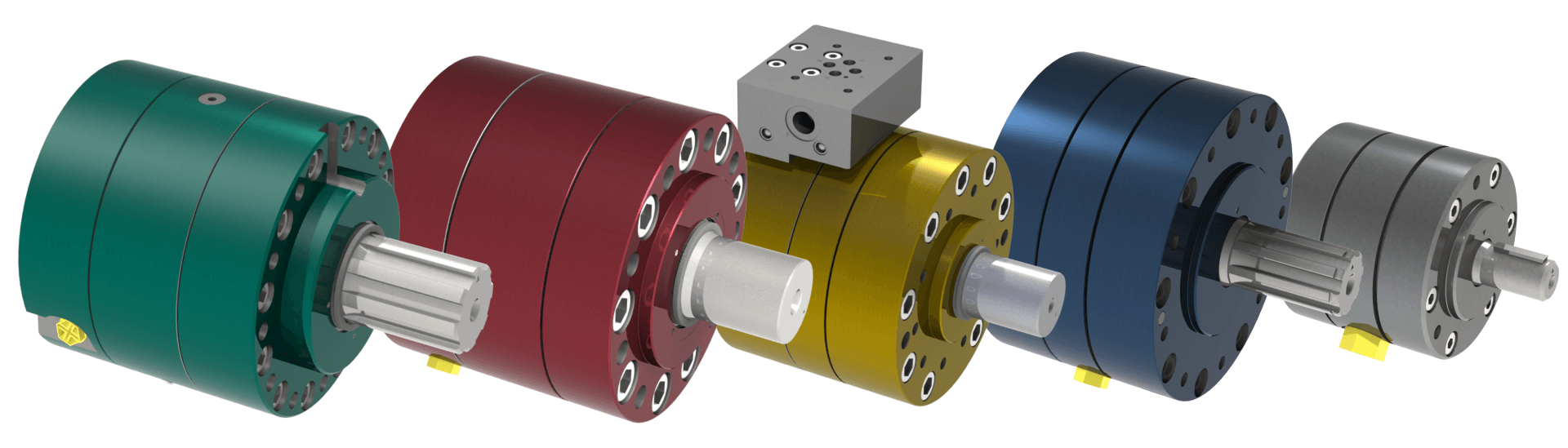

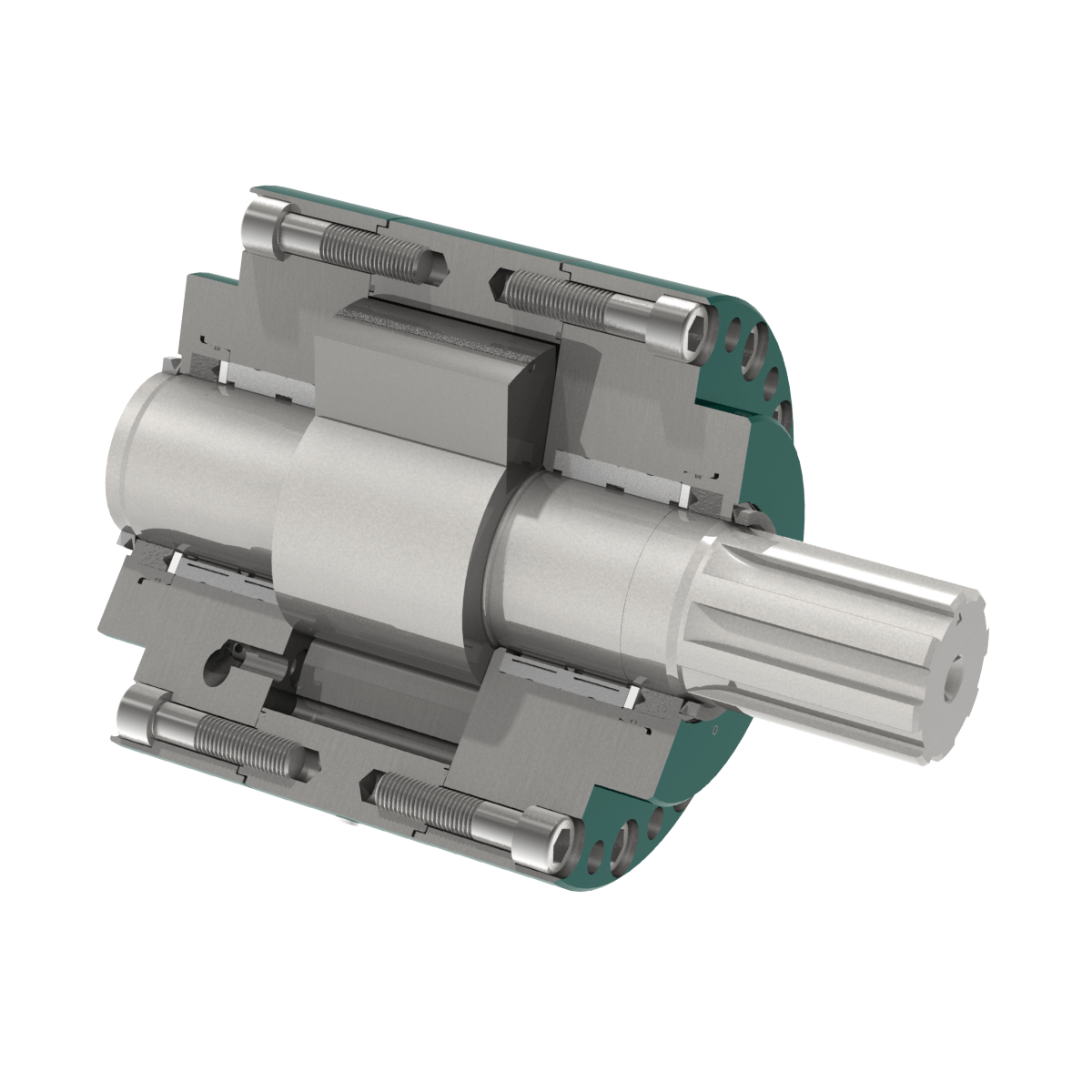

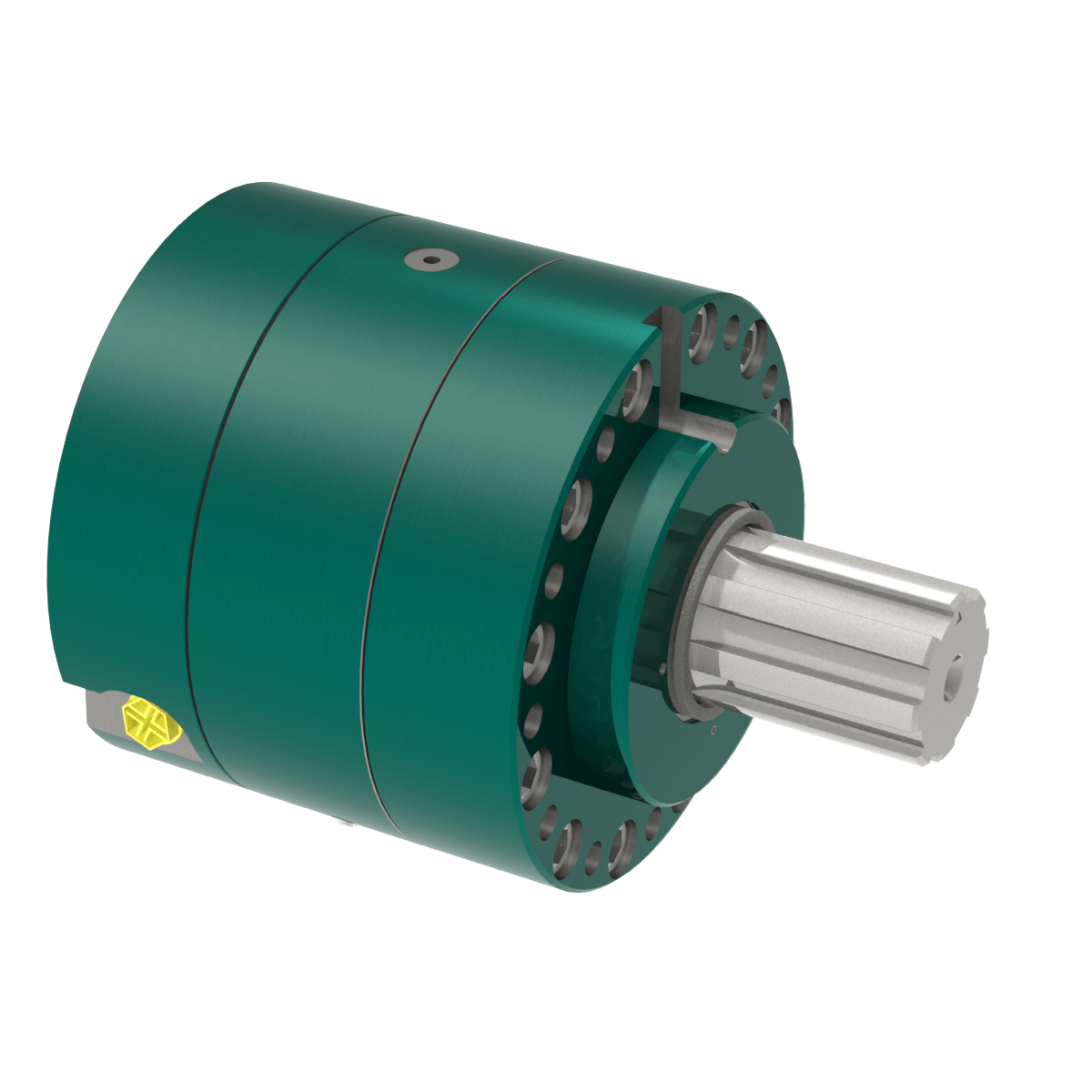

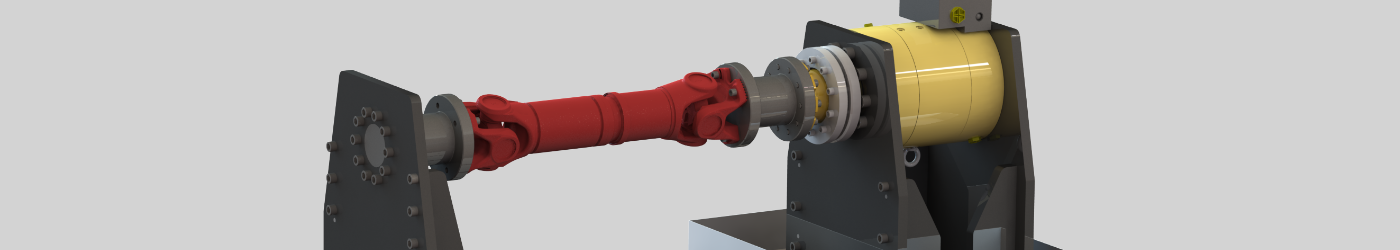

Modell | Druck [bar] | Drehmoment [Nm/bar] | Drehmoment max [Nm | Keilwellen-profil ISO 14 | Schwenk-winkel max. | Download Datenblatt | Download STEP-Datei |
---|---|---|---|---|---|---|---|
LDK 7/7 D | 250 / 210 | 0,7 / 1,4 | 175 / 294 | 6x18x22 | 270° / 90° | LDK 7/7 D | LDK7.STEP |
LDK 7 L | 180 | 1,1 | 202 | 6x18x22 | 270° | LDK 7 L | LDK7L.STEP |
LDK 25 / 25 D | 300 / 250 | 2,5 / 5,0 | 750 / 1 250 | 8x32x38 | 270° / 90° | LDK 25/25 D | LDK25.STEP |
LDK 25 L / 25 LD | 180 / 150 | 4,0 / 8,0 | 720 / 1 200 | 8x32x38 | 270° / 90° | LDK 25 L/25 LD | LDK25L.STEP |
LDK 50 / 50 D | 300/150 | 5,0 / 10,0 | 1 500 / 1 500 | 8x36x42 | 270° / 90° | LDK 50/50 D | LDK50.STEP |
LDK 50 L / 50 LD | 180 / 120 | 8,0 / 16,0 | 1 440 / 1 920 | 8x36x42 | 270° / 90° | LDK 50 L/50 LD | LDK50L.STEP |
LDK 100 / 100 D | 300 / 210 | 10,0 / 20,0 | 3 000 / 4 200 | 8x52x60 | 270° / 90° | LDK 100/100 D | LDK100.STEP |
LDK 100 L / 100 LD | 180 / 150 | 16,0 / 32,0 | 2 880 / 4 800 | 8x52x60 | 270° / 90° | LDK 100 L/100 LD | LDK100L.STEP |
LDK 200 / 200 D | 300 / 175 | 20,0 / 40,0 | 6 000 / 7 000 | 8x62x72 | 270° / 90° | LDK 200/200 D | LDK200.STEP |
LDK 200 L / 200 LD | 180 / 125 | 32,0 / 64,0 | 5 760 / 8 000 | 8x62x72 | 270° / 90° | LDK 200 L/200 LD | LD200L.STEP |
LDK 400 / 400 D | 300 / 210 | 40,0 / 80,0 | 12 000 / 16 800 | 10x82x92 | 270° / 90° | LDK 400/400 D | LDK400.STEP |
LDK 400 L / 400 LD | 180 / 160 | 64,0 / 128,0 | 11 520 / 20 480 | 10x82x92 | 270° / 90° | LDK 400 L/400 LD | LDK400L.STEP |
LDK 800 / 800D | 300 / 250 | 80,0 / 160,0 | 24 000 / 40 000 | 10x112x125 | 270° / 90° | LDK 800/800D | LDK800.STEP |
LDK 1600 / 1600 D | 250 / 240 | 160,0 / 320,0 | 40 000 / 76 800 | Zahnwellen-profil 150x3x48x8f | 270° / 90° | LDK 1600/1600 D | LDK1600.STEP |
