HSR series

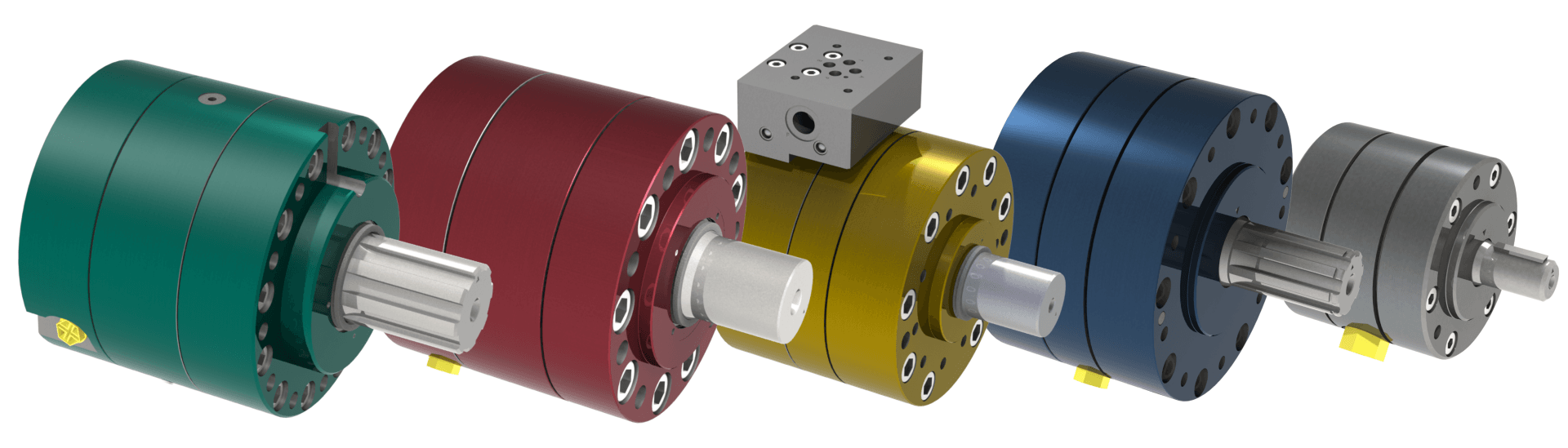

The HSR series - for high-frequency applications

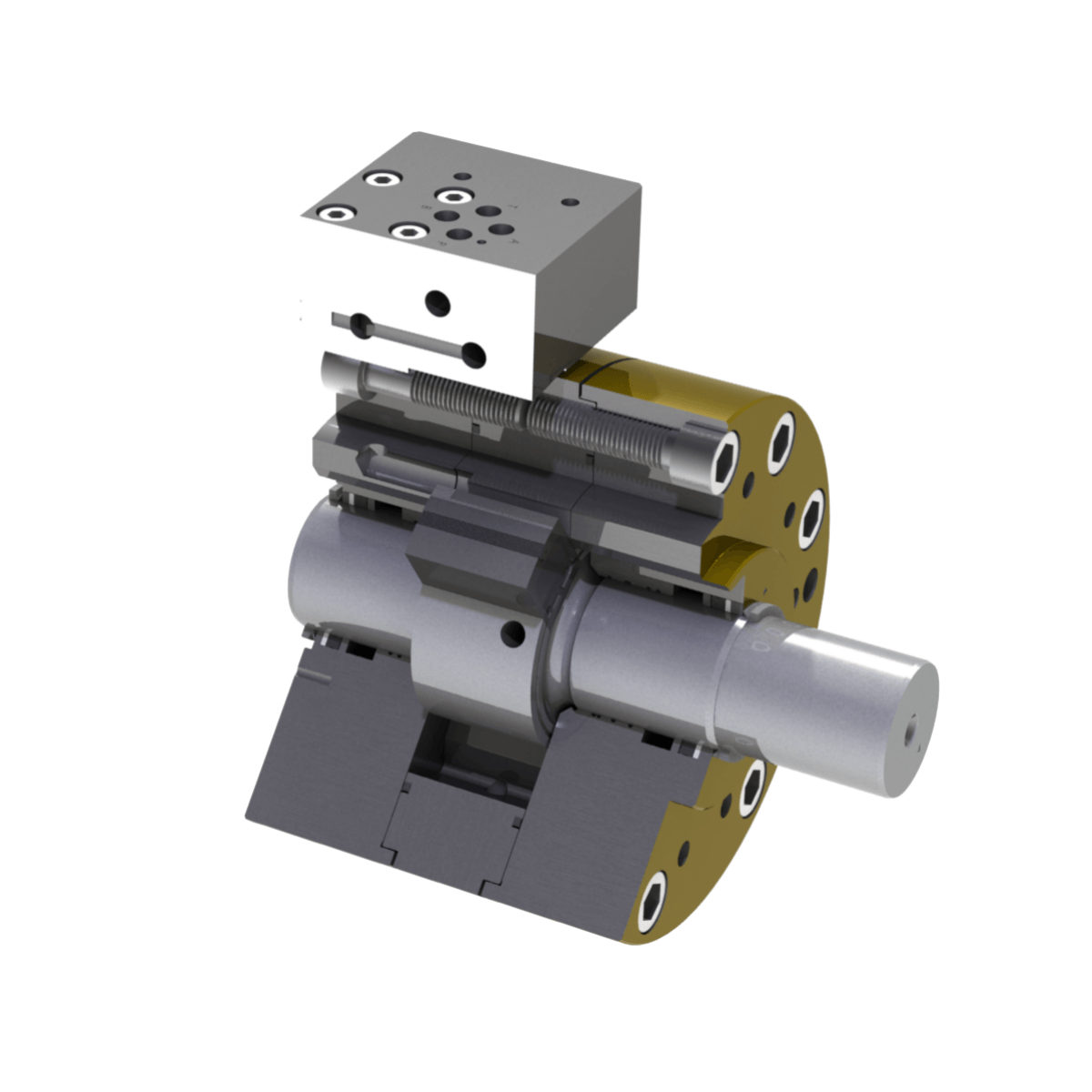

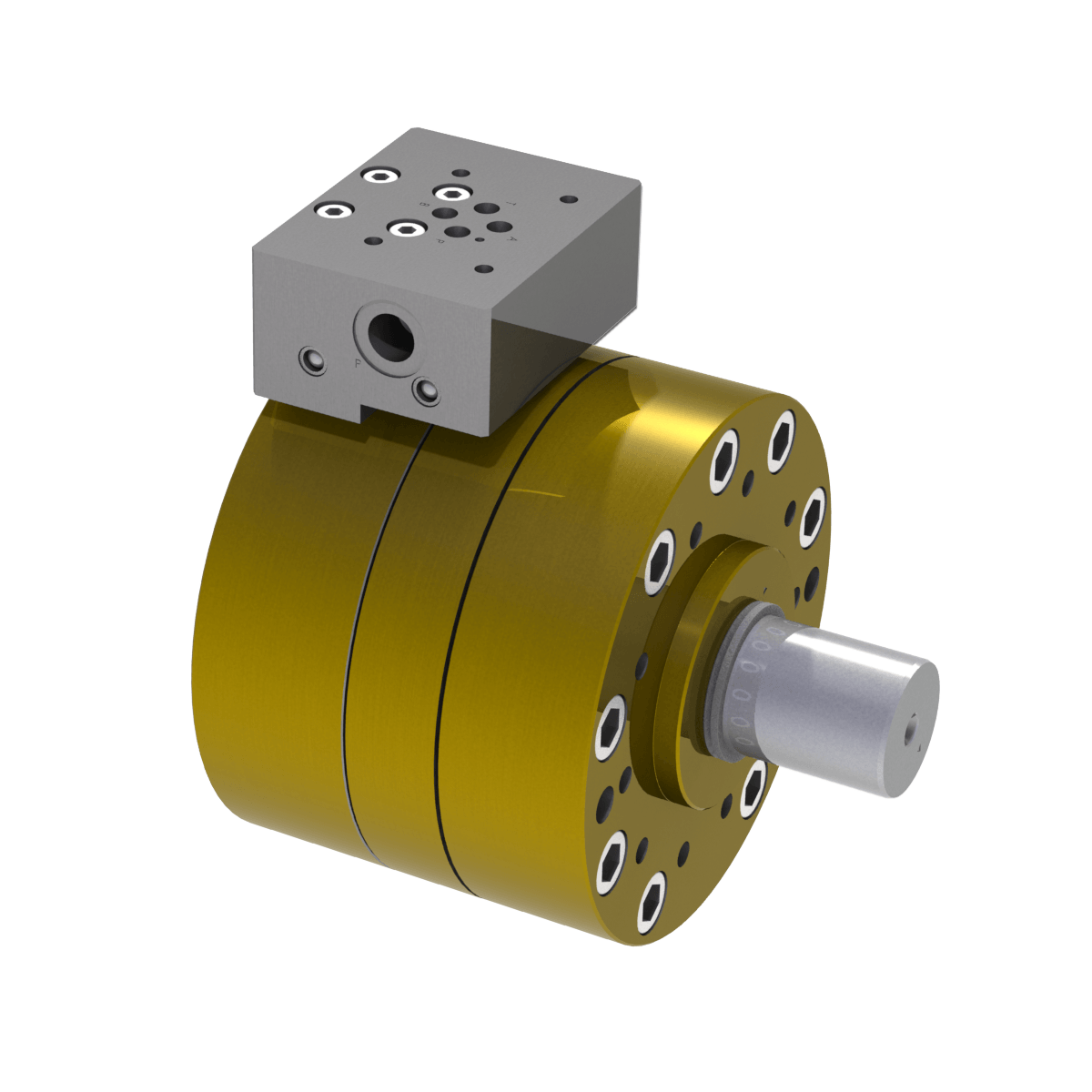

With the series HSR (High-Speed Rotary Actuator) a highly dynamic rotary actuator has been developed that meets the growing requirements. The part-turn actuators of the HSR series have axially and radially acting bearings on the output shaft. Experience and co-engineering with our customers have resulted in a cylinder that enables adequate internal oil exchange even in the high frequency range. The HSR series has an operating pressure of max. 150 bar, a Swivel angle from 0 to 110 ° and has a torque from 285 to 54 109 Nm.
In the table below you will find the technical data sheets for all cylinders of this series and the corresponding 3D data in STEP format for download.
Characteristics:
• highest load change frequencies
• high torques
• optional rotary encoder
• backlash-free torque transmission
• wear-resistant sliding surfaces
• individual swivel angle up to max. 110 °
Areas of application:

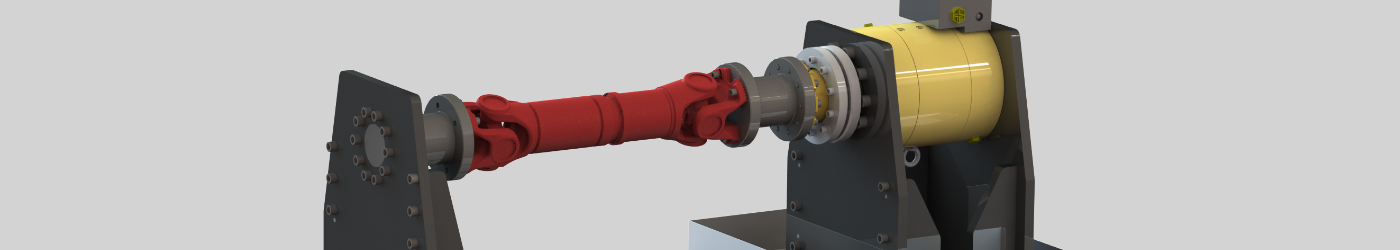

• test benches
• test benches
• material testing
• torsion test
• fatigue tests
• high-frequency special machine applications
| model | Pressure [bar] | Torque [Nm / bar] | Torque max [Nm | Shaft diameter [mm] | Swivel angle max. | Download data sheet | Download STEP file |
|---|---|---|---|---|---|---|---|
| HSR 11 | 210 | 1,88 | 398 | 25 | 110° | HSR 11 | HSR 11.STEP |
| HSR 12 | 210 | 6,72 | 1 413 | 38 | 110° | HSR 12 | HSR 12.STEP |
| HSR 13 | 210 | 12,31 | 2 585 | 52 | 110° | HSR 13 | HSR 13.STEP |
| HSR 14 | 210 | 20,34 | 4 273 | 60 | 110° | HSR 14 | HSR 14.STEP |
| HSR 15 | 210 | 33,93 | 7 125 | 70 | 110° | HSR 15 | HSR 15.STEP |
| HSR 16 | 210 | 67,22 | 14 116 | 95 | 110° | HSR 16 | HSR 16.STEP |
| HSR 17 | 210 | 96,03 | 20 167 | 95 | 110° | HSR 17 | HSR 17.STEP |
| HSR 18 | 210 | 168,0 | 35 280 | 130 | 110° | HSR 18 | HSR 18.STEP |
| HSR19 | 210 | 234,53 | 49 251 | 130 | 110° | HSR 19 | HSR 19.STEP |
| HSR 20 | 210 | 340,2 | 71 442 | 150 | 110° | HSR 20 |
