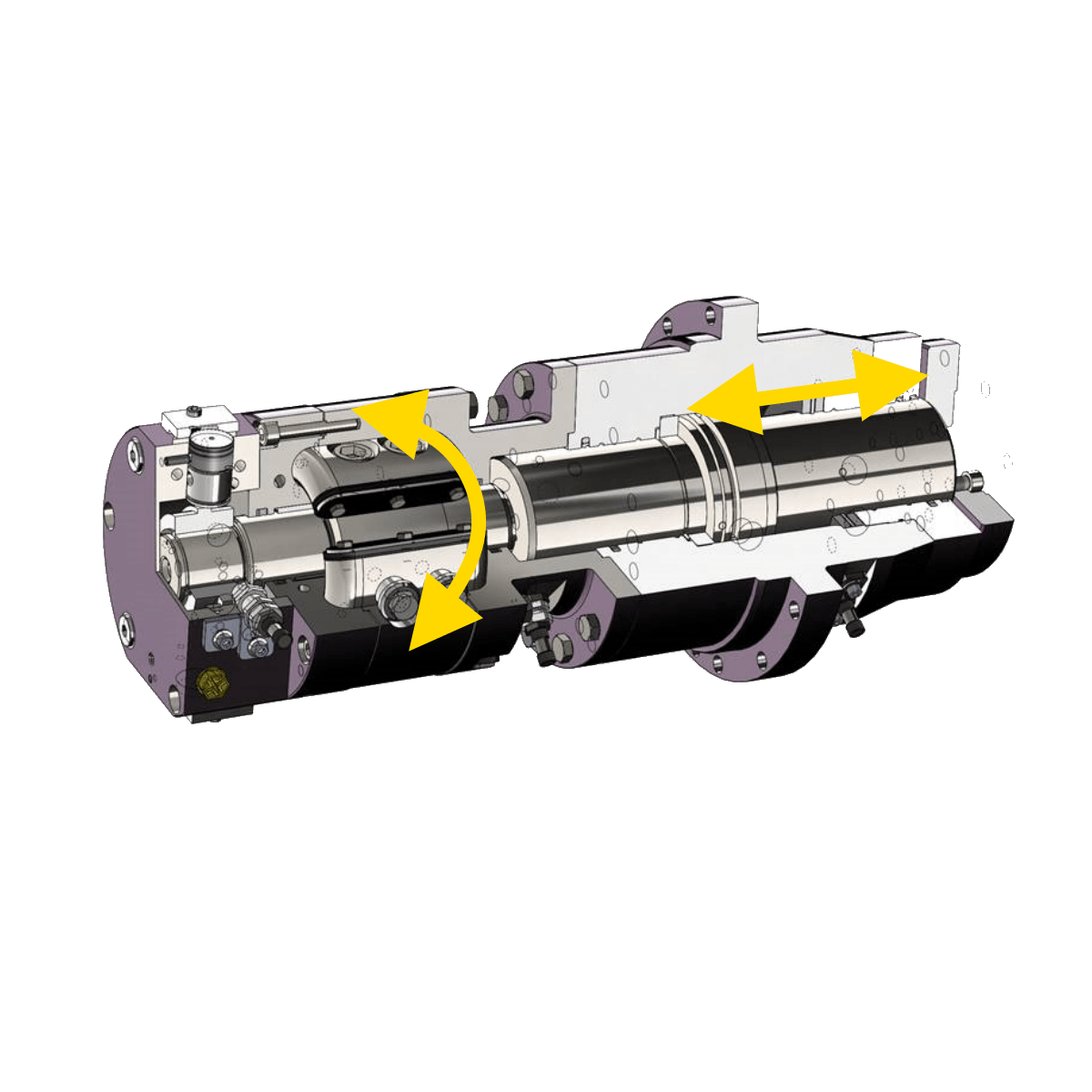

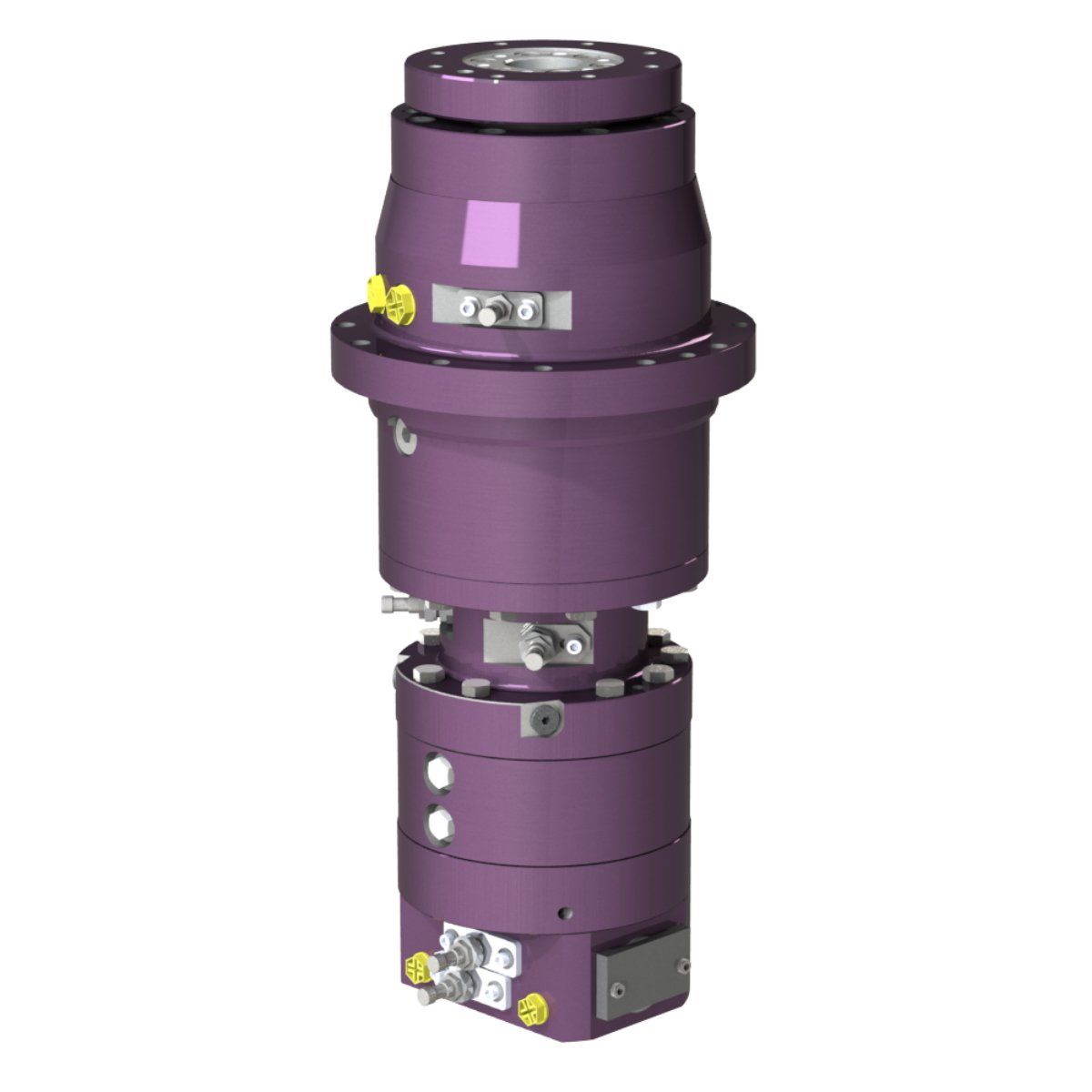

The combination of tried-and-tested hydraulic rotary drives with powerful linear cylinders resulted from the special requirements of pallet changers on machine tools. The motion sequences can be combined and synchronized as desired and thus also perform complex tasks precisely and safely. The design options are as varied as the tasks - we would be happy to develop suitable solutions for your application.
Characteristics:
• fast load changes
• high torque
• wear-resistant sliding surfaces
• individual swivel angles
• variable lifting distances
• end position cushioning
• position queries for swivel and stroke
Areas of application:
• pallet changer
• machine tools
• combined rotary and lifting applications
• special constructions
Model | Pressure [bar] | Torque max [Nm] | Swivel angle max | Lift power [kN] | Lift length [mm] |
---|---|---|---|---|---|
AND 101-220 | 80 | 910 | 180° | 60 | 220 |
AND 175-054 | 90 | 1390 | 180° | 48 | 54 |
AND 175-075 | 90 | 1390 | 180° | 46 | 75 |
AND 200-230 | 80 | 1600 | 180° | 86 | 230 |
