CNC machining
CNC manufacturing: Turning - Milling - Grinding
We have a wide range of modern CNC cutting machines on which we are also happy to manufacture your parts for you. Here is an extract from our CNC capacities:

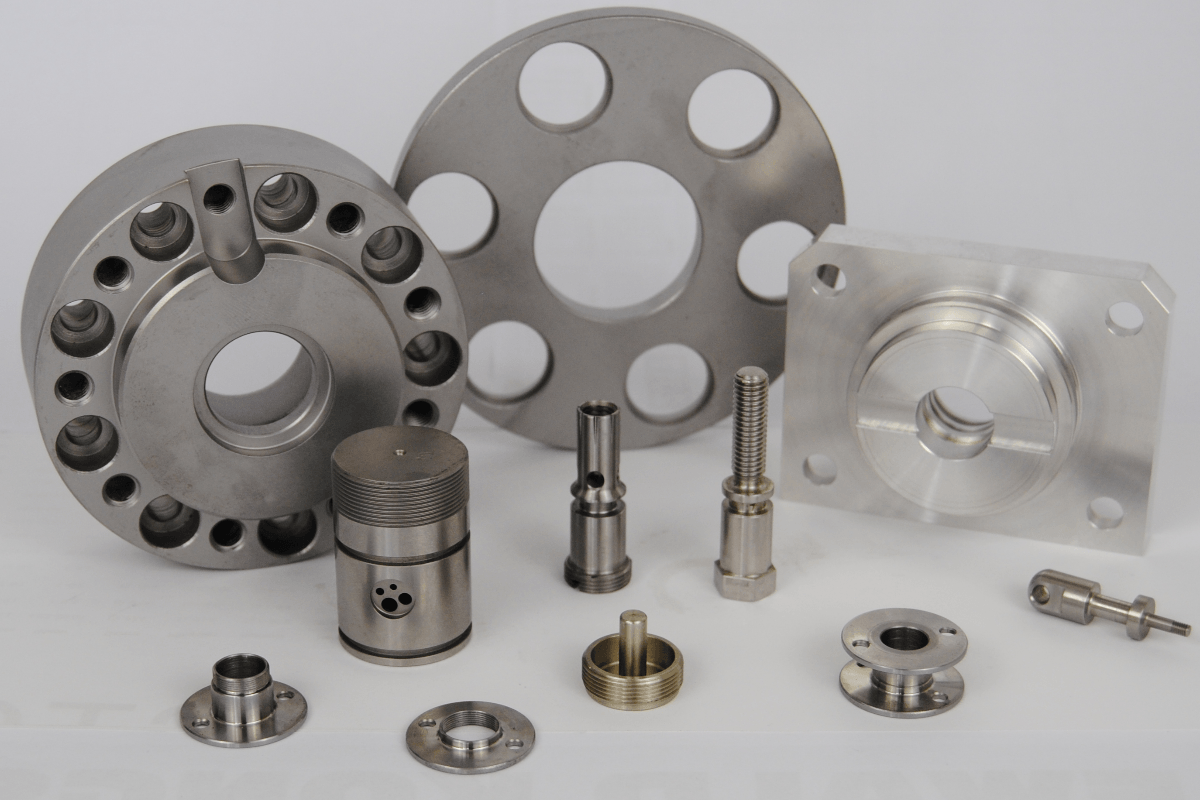

CNC turning:
Turning diameter max. 450 mm, turning length max. 1.000 mm, driven tools for drilling and milling, bar loading magazine up to 1.200 x 50 mm with counter spindle for backside machining

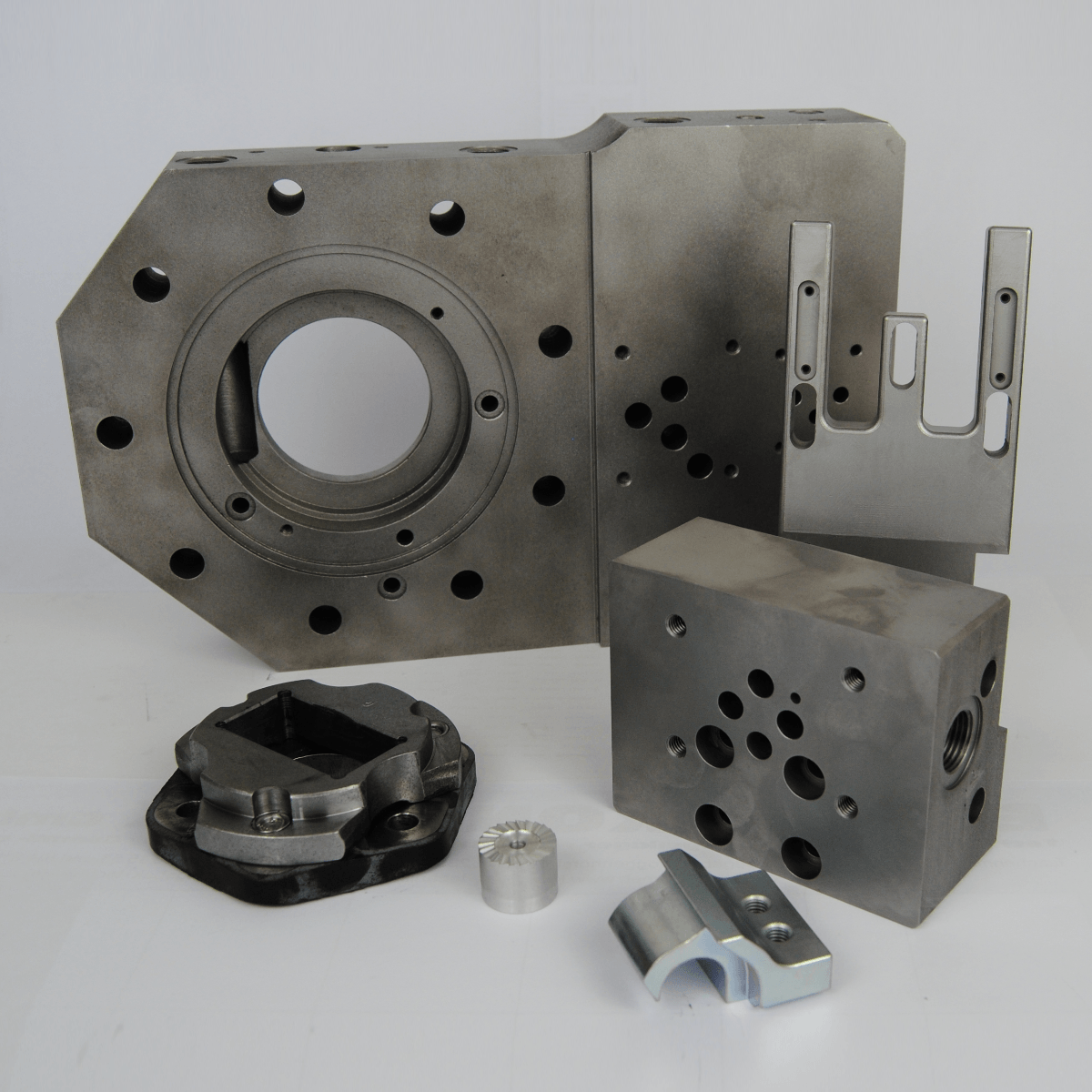

CNC milling:
X = 800 mm Y = 800 mm Z = 1.000 mm: 5-axis machining
X = 2.360 mm Y = 1.200 mm Z = 500 mm: 3-axis machining
CNC grinding:
CNC - Universal - cylindrical grinding machine for medium-sized workpieces for external and internal grinding in oneClamping. Center height 175 mm, center width 1.000 mm, max. Weight between tips 80 kg.
Surface grinding:
L 800 mm x W 500 mm x H 400 mm, max. 500 kg
Profile grinding:
Center height 200 mm, grinding diameter 10 - 250 mm, grinding length max. 755 mm
e.g. B. for splined profile according to DIN 5463 or splined profile according to DIN 5480
