The DKZ series - compact and powerful

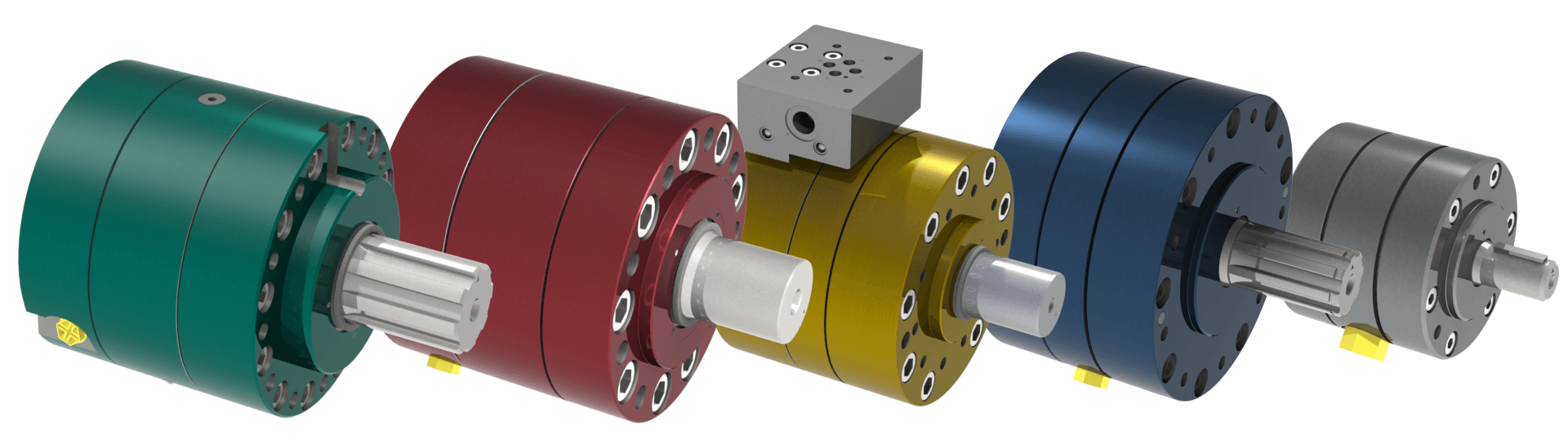

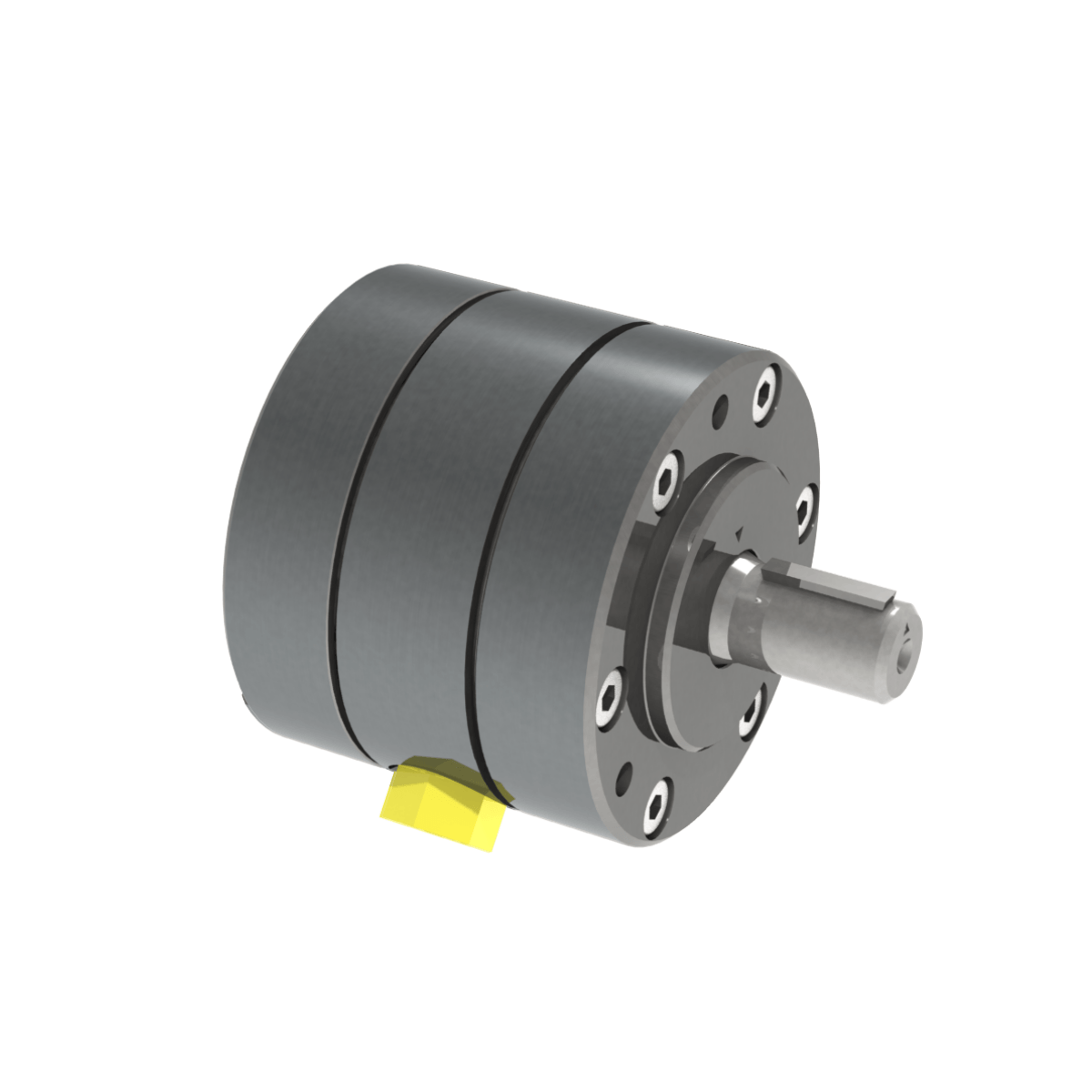

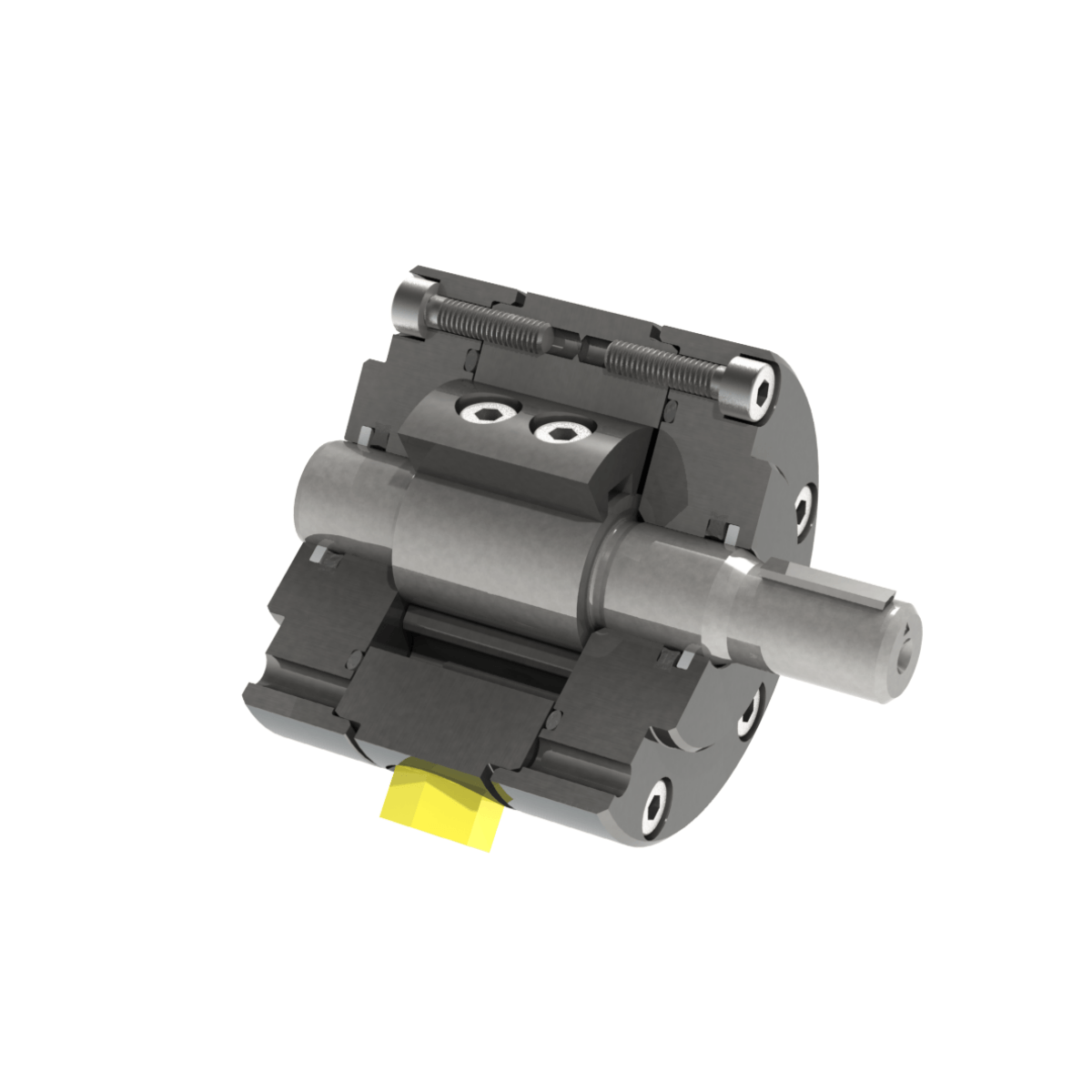

The DKZ series is also called mini rotary piston working cylinder and is designed for applications with low torque between 10 - 20 Nm. Thanks to its sealless design, it is suitable for particularly high swivel frequencies. The swivel angle is limited to 200 ° and the operating pressure to 50 bar. The torque is taken off on the output shaft with the help of a disc spring connection according to DIN 6888.

In the table below you will find the technical data sheets for all cylinders of this series and the corresponding 3D data in STEP format for download.
Characteristics:
• rapid load changes
• Double shaft extension possible
• Shaft ends with disc springs
• High level of corrosion protection possible
• Rotation angle adjustment
• High flexibility
Areas of application:
• Tool change
• Material handling
• Fixture and special machine construction
model Pressure [bar] Torque [Nm / bar] Torque max [Nm Shaft diameter [mm] Swivel angle max. Download data sheet Download STEP file
DKZ 1.50 50 0,25 12,5 12 200° DKZ 1.50 DKZ 1.50
DKZ 2.50 50 0,5 25 12 200° DKZ 2.50 DKZ 2.50
