The SP series - individual and fast

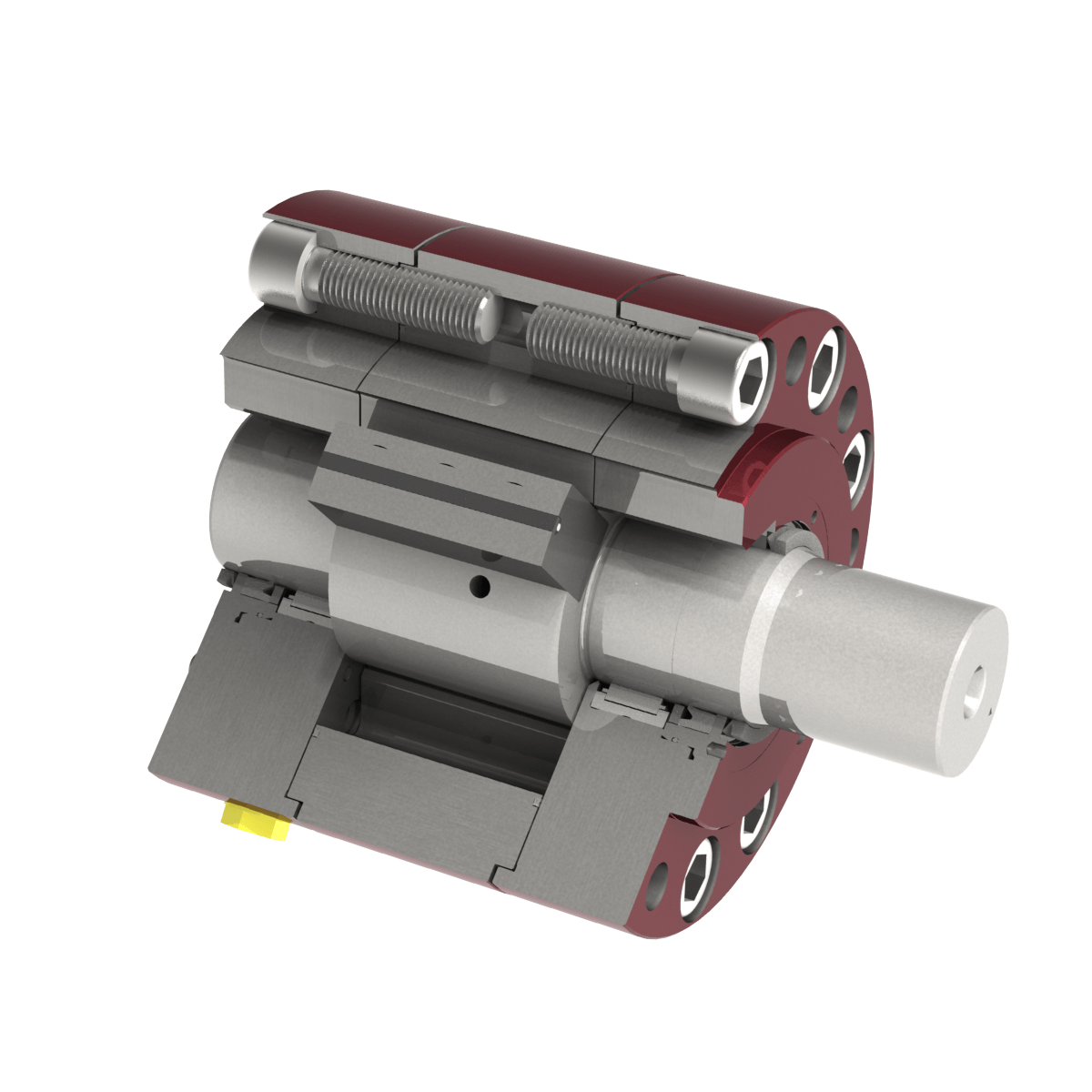

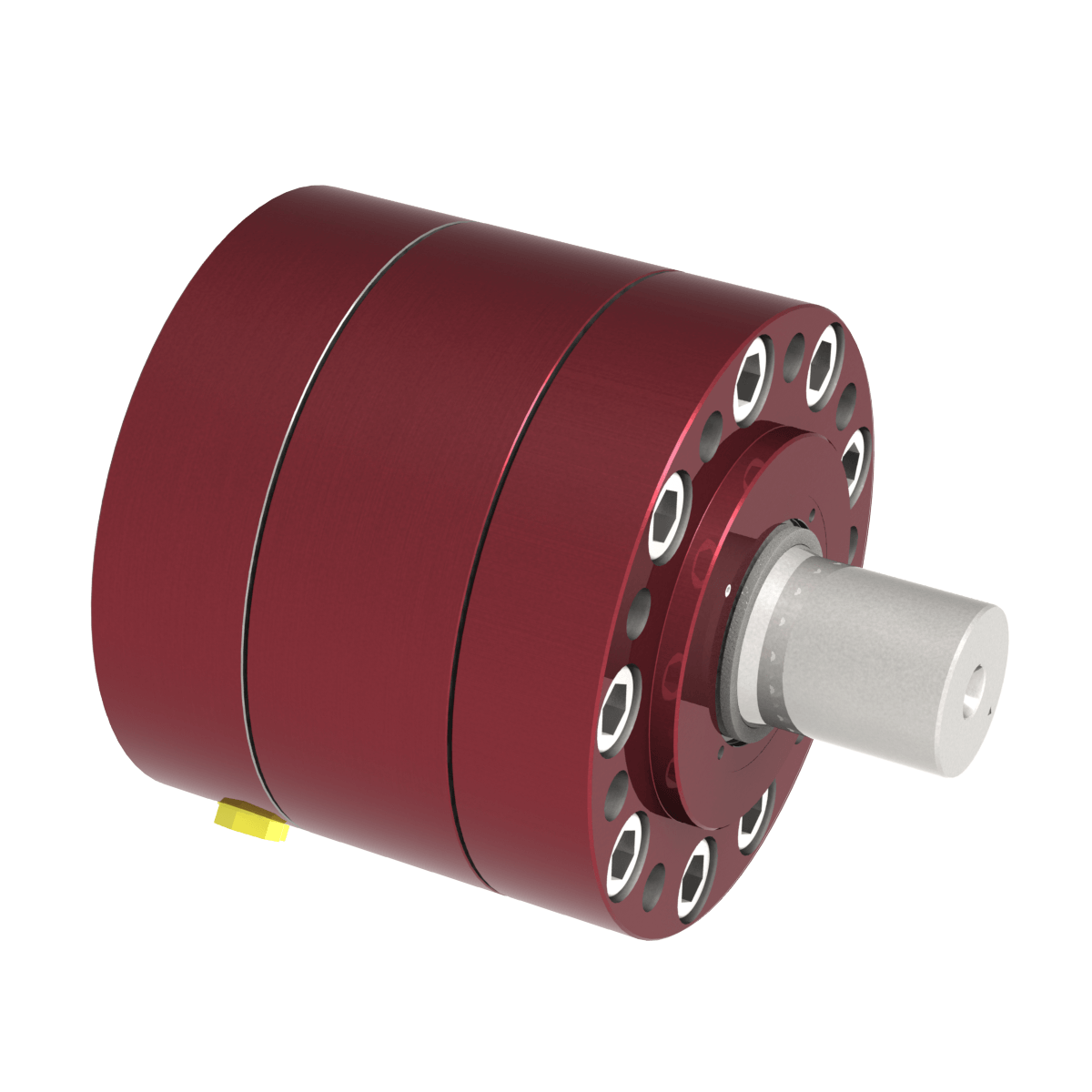

SP - that stands for Super Power - and they deserve the name. The devices are approved for an operating pressure of 300 bar, only the differential pressure is decisive for the generation of the torque. In the standard version, the devices of the - SP series are equipped with a swivel angle of 270 °. Rotary piston working cylinders with a smaller angle including end position damping and an inner stop can also be supplied on request.
With the double piston version (D devices), the torque can be doubled again for the same size with a swivel angle of up to 90 °.
As an option, the devices can also be flank-centered according to DIN 5463, splined shafts according to DIN 5480 or feather keys according to DIN 6885.
In the table below you will find the technical data sheets for all cylinders of this series and the corresponding 3D data in STEP format for download.
Characteristics:
• servo-hydraulic applications
• high number of load changes
• high torque
• little space
• individual swivel angle
• end position damping
• control pin
• position inquiry
• different shaft forms: hollow shaft, spline shaft, smooth shaft, feather key shaft
Areas of application:
• machine tools
• machine tools
• warehousing and logistics
• actuating and control applications
• steering systems for land and water vehicles
• printing machines
• handling technology
• assembly lines

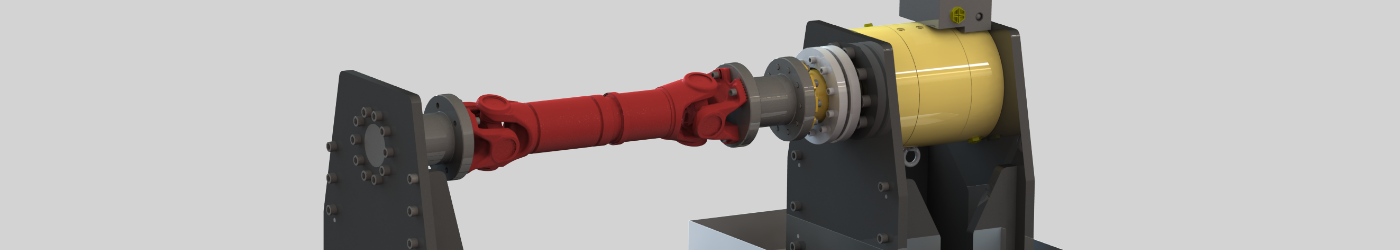

• test benches
• cranes

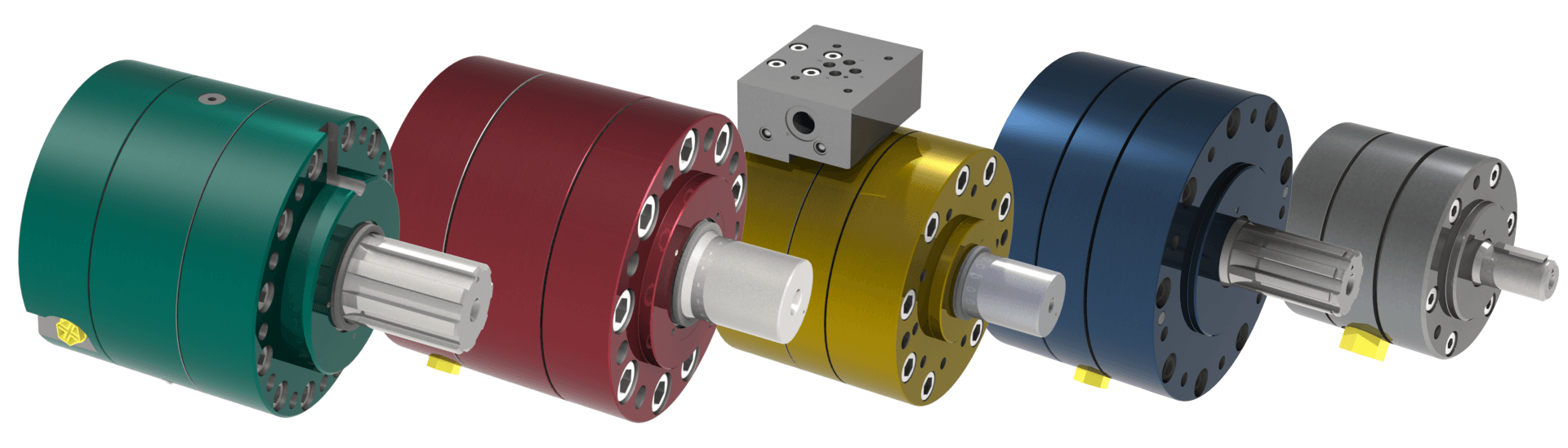

| model | Pressure [bar] | Torque [Nm / bar] | Torque max [Nm | Shaft diameter [mm] | Swivel angle max. | Download data sheet | Download STEP file |
|---|---|---|---|---|---|---|---|
| SP 11 / 11 D | 300/150 | 0,76 / 1,52 | 228 | 25 | 270°/90° | SP 11 / 11D | SP11.STEP |
| SP 12 / 12 D | 300/150 | 3,0 / 6,0 | 900 | 38 | 270°/90° | SP 12 / 12 D | SP12.STEP |
| SP 13 / 13 D | 300/150 | 4,4 / 8,8 | 1 320 | 42 | 270°/90° | SP 13 / 13 D | SP13.STEP |
| SP 14 / 14 D | 300/150 | 8,9 / 17,8 | 2 670 | 60 | 270°/90° | SP 14 / 14 D | SP14.STEP |
| SP 15 / 15 D | 300/150 | 13,4 / 26,8 | 4 020 | 60 | 270°/90° | SP 15 / 15 D | SP15.STEP |
| SP 16 / 16 D | 300/150 | 29,8 / 59,6 | 8 940 | 95 | 270°/90° | SP 16 / 16 D | SP16.STEP |
| SP 17 / 17 D | 300/150 | 46,7 / 93,4 | 14 010 | 95 | 270°/90° | SP 17 / 17 D | SP17.STEP |
| SP 18 / 18 D | 300/150 | 76,7 / 153,4 | 23 010 | 130 | 270°/90° | SP 18 / 18 D | SP18.STEP |
| SP 19 / 19 D | 300/150 | 107,3 / 214,6 | 32 200 | 130 | 270°/90° | SP 19 / 19 D | SP19.STEP |
| SP 20 / 20 D | 300/150 | 160 / 320 | 48 000 | 150 | 270°/90° | SP 20 / 20 D | SP20.STEP |
